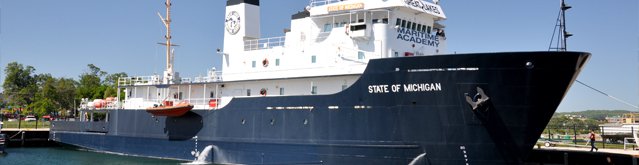

T/S State of Michigan Specifications

Length

Between perpendiculars (LBP): 194.00'
Overall (LOA): 224'

Beam and Depth

Molded Beam: 43.00'
Depth to Main Deck, Molded: 20.00'
Bulkhead Deck: Main Deck

Load Line

Draft: 14" 11'
Displacement: 2,262 LTON
Speed: 11 kts (12.65 mph)

Light Ship

Displacement: 1,433 LTON
VCG (ABL): 22.20'
LCG (Aft of FP): 96.94'
Mean Draft, Keel: 11.11'

Capacities

Fuel Oil (95%) 386.9
LTON Lube Oil (95%) 35.1 LTON
Sea Water Ballast (100%) 678.5 LTON
Potable Water (100%) 18.9 LTON
Effluent Holding 166.4 LTON
US Gross Tonnage: 1471.8

Deck Heights

Lower Deck 14' 0"
Main Deck 20' 0"
Forcastle Deck 31' 11 5/8"
Upper Deck 40' 2 5/8"
Bridge Deck 49' 2 5/8"

Power Plant

Diesel-electric; 4 Caterpillar D 398 diesel generators,
3,200hp, 2 motors, 1,600hp; 2 shafts; bow thruster; 550 hp
Underway Fuel Consumption 100 gal/hr
Not underway "Hotel Functions" 25 gal/hr

Crew

15 Officers/crew, 2 Instructors, 50 Cadets (38 to 69)
